Product Features:

• Dual-Axis Movement: Offers both tilt and rotation for optimal positioning, ensuring precise alignment during welding tasks.

• Heavy-Duty Capacity: Built to support large and heavy workpieces with ease, making it ideal for heavy-duty welding applications.

• Servo Motor Control: Provides smooth and accurate positioning with high repeatability for consistent welding results.

• Compact L-Type Design: Space-efficient design for environments with limited floor space, perfect for small to medium-sized workshops.

• Adjustable Speed Control: Customizable speed settings to match various welding processes and materials, enhancing flexibility.

• Seamless Robotic Integration: Compatible with top industrial robots, including ABB, KUKA, FANUC, and YASKAWA, for smooth automation integration.

• User-Friendly Interface: Easy-to-use controls for setup and operation, reducing training time and operator errors.







  No.	Item	DWP-L-500	DWP-L-1000	DWP-L-2000
  1	Rated load	500kg (within 2nd axis radius R400mm)	1000kg (within 2nd axis radius R600mm)	2000kg (within 2nd axis radius R800mm)
  2	Standard radius of rotary	R400mm	R600mm	R800mm
  3	rotary angle of 1st axis	±180°	±180°	±180°
  4	rotary angle of 2nd axis	±360°	±360°	±360°
  5	Rated rotary speed of 1st axis	50°/S	50°/S	17°/S
  6	Rated rotary speed of 2nd axis	70°/S	70°/S	17°/S
  7	Repeated positioning accuracy	±0.10mm	±0.10mm	±0.20mm
  8	Positioner dimension (L×W×H)	1500mm×500mm×850mm	2000mm×750mm×1200mm	2400mm×900mm×1600mm
  9	Standard 2nd axis rotary disk	φ800mm	φ1200mm	φ1500mm
  10	Height of 1st axis rotary center	550mm	800mm	1000mm
  11	Power supply	Three phase 200V ±10% 50Hz(with isolation transformer)	Three phase 200V ±10% 50Hz (with isolation transformer)	Three phase 200V ±10% 50Hz (with isolation transformer)
  12	Insulation grade	H	H	H
  13	Weight	about 900kg	about 1600kg	about 2500kg

Product Description:

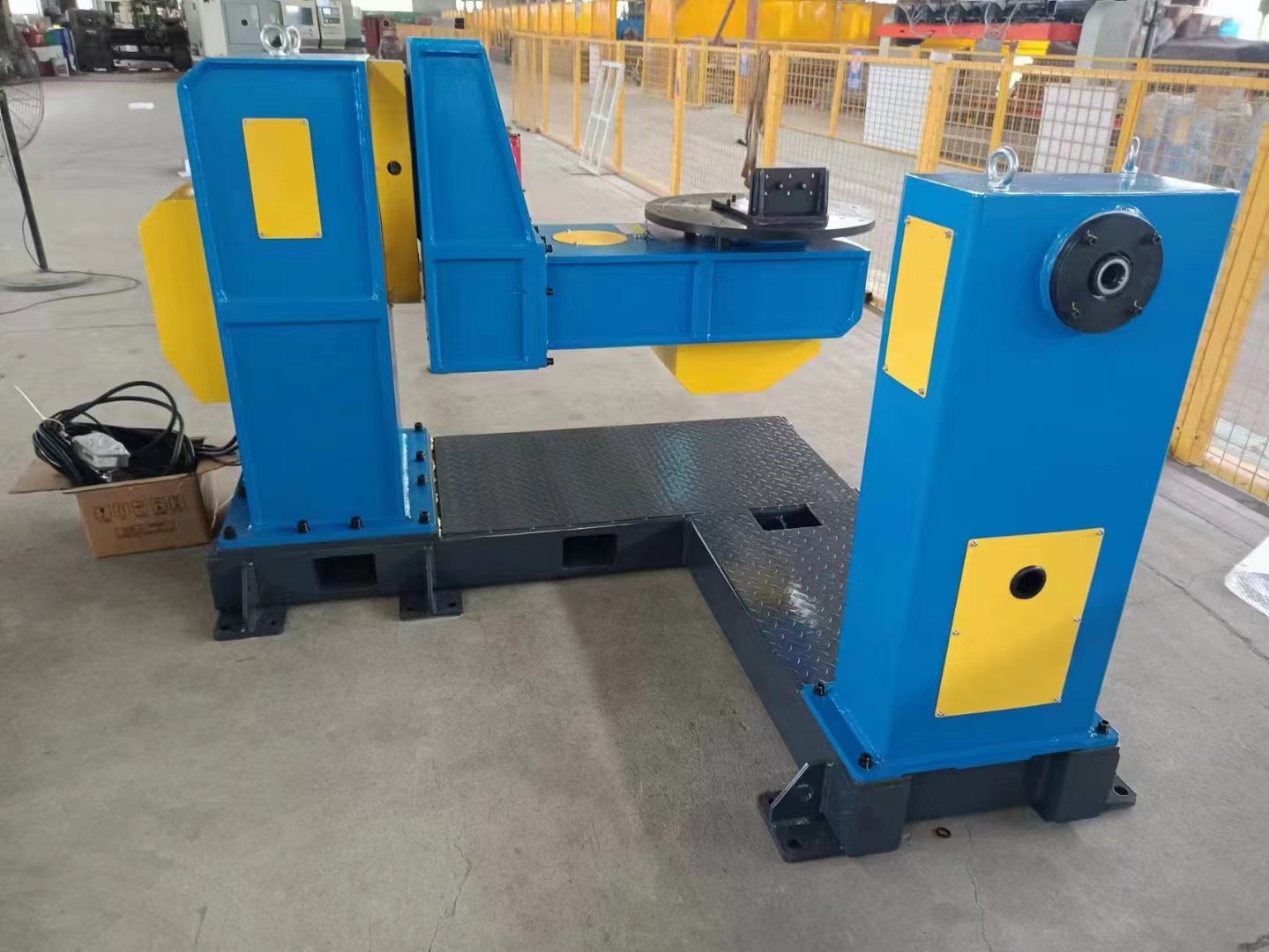

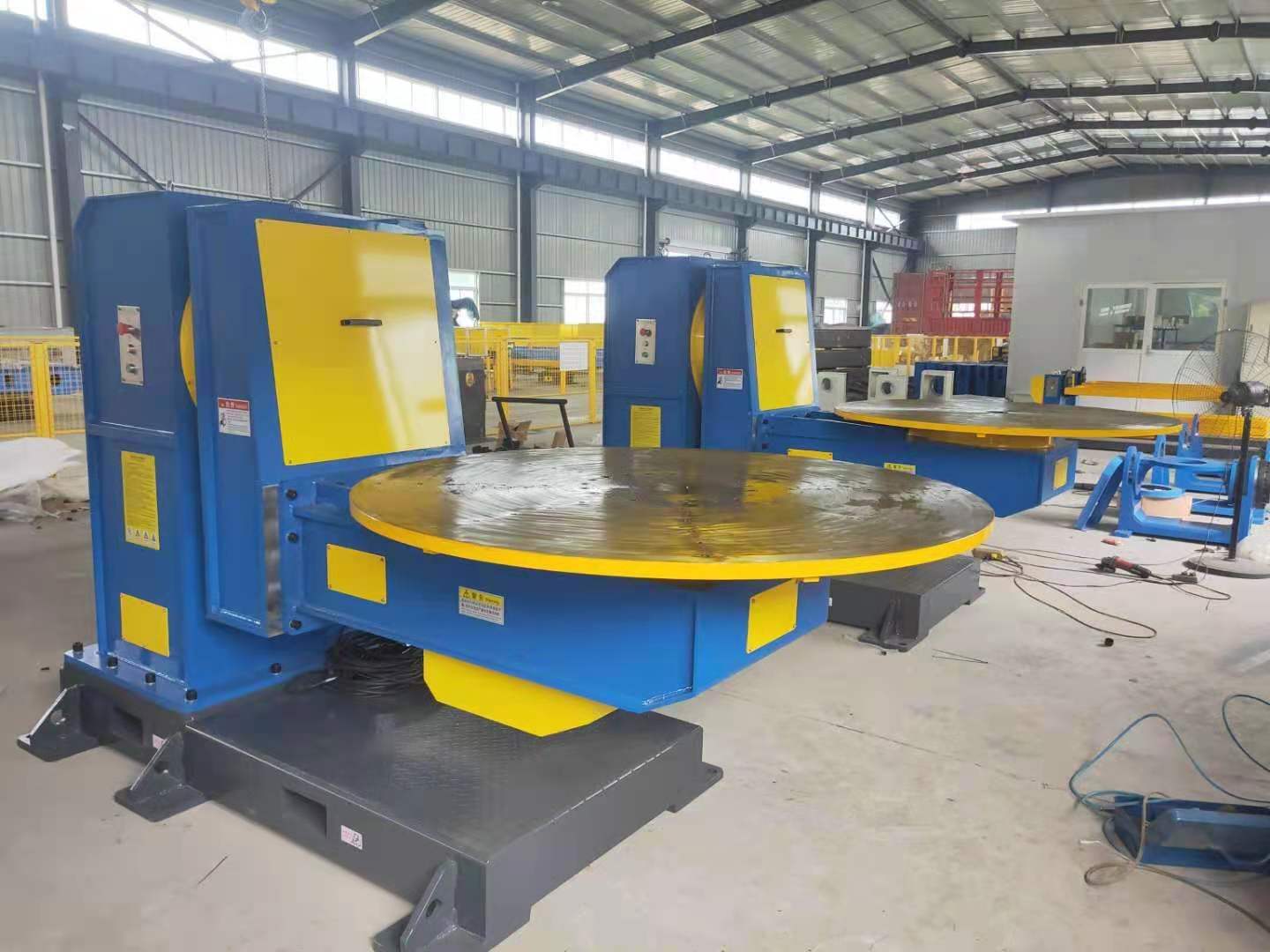

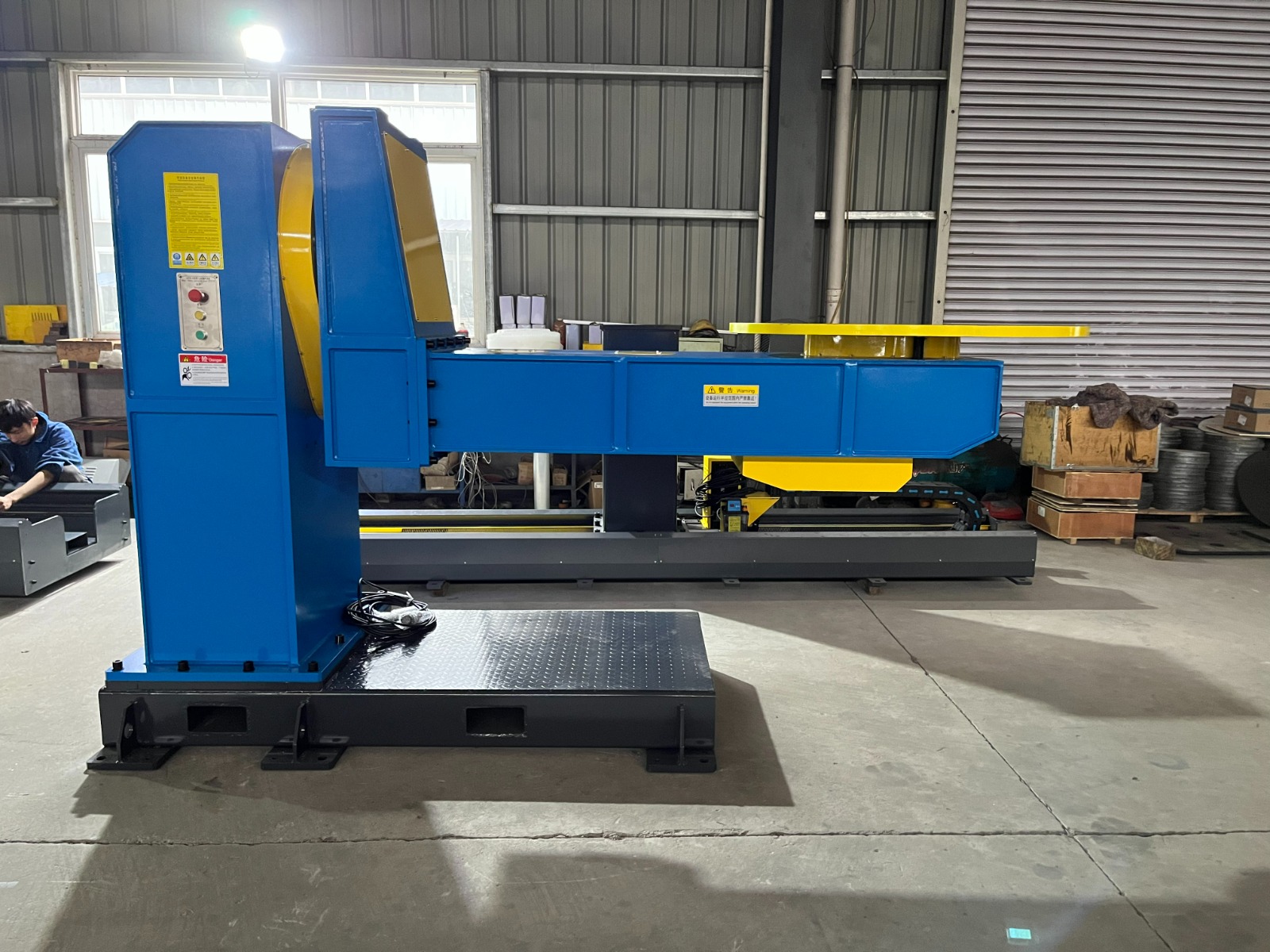

The Double Axis Welding Positioner L-Type is an advanced, dual-axis positioning system designed to provide maximum precision and flexibility for robotic welding operations. Featuring both tilt and rotation capabilities, this positioner allows for precise orientation of workpieces, ensuring high-quality, consistent welds throughout the entire welding process.

Built for heavy-duty applications, this positioner supports large and complex workpieces, making it ideal for industries such as automotive, aerospace, and heavy machinery manufacturing. The L-type design is particularly suitable for environments with limited space, offering a compact and efficient solution without compromising on performance.

The servo motor control system delivers precise, repeatable movements, while the adjustable speed control allows operators to tailor the rotation and tilt speeds to suit the specific requirements of the welding process. Whether you are welding small parts or large components, this positioner provides the flexibility and accuracy needed to improve productivity and ensure consistent weld quality.

Product Advantages:

Dual-Axis Precision
With the ability to tilt and rotate workpieces, the Double Axis Welding Positioner L-Type provides superior positioning accuracy, ensuring perfect alignment for consistent welds every time.

Heavy Workpiece Support
Designed to handle large, heavy parts, this positioner is ideal for high-demand industrial welding applications, reducing the need for manual adjustments or additional equipment.

Enhanced Welding Flexibility
The adjustable speed control allows operators to fine-tune the tilt and rotation speeds for a wide variety of welding processes, making it suitable for diverse welding applications and materials.

Compact and Space-Efficient
The L-type design ensures that the positioner takes up less floor space compared to traditional models, making it a great choice for shops with limited workspace or those looking to maximize their operational area.

Smooth Robot Integration
The Double Axis Welding Positioner is designed to work seamlessly with robotic arms from leading brands like ABB, KUKA, FANUC, and YASKAWA, ensuring effortless integration into your existing robotic system.

Improved Productivity
By automating the positioning of workpieces, the double-axis positioner reduces manual handling, improving cycle time, reducing labor costs, and increasing overall productivity.

Durability and Longevity

Built with high-quality materials, this positioner is designed to withstand demanding industrial environments, offering long-term reliability with minimal maintenance.

Safety Improvements
Automating workpiece positioning reduces the need for operator intervention, which in turn enhances safety by limiting exposure to high-risk welding environments.

Take your welding operations to the next level with the Double Axis Welding Positioner L-Type. Achieve precise, consistent welds while improving productivity and safety. Contact us today for more details or to request a quote!
